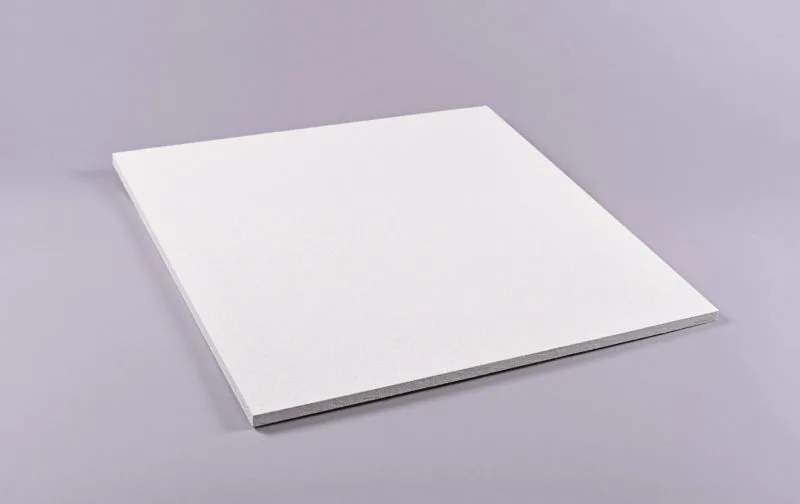

Loke™ Ceiling plate 15mm sound absorbing
kr 348 - kr 412 kr 313 - kr 371 pr. m² inc.vat
Extremely good sound absorption. Sound attenuation, class A, for system ceilings for an optimal acoustic solution. The product has excellent sound absorption and light reflection properties
Sound absorber. A+E edge.
E-edge is a commodity.
For larger orders, please request offer.
Description
The product has the traditional surface texture that characterises glass wool ceilings.
15 mm absorber. The product has excellent sound absorption and light reflection properties. Therefore, the product is well suited for use in office environments, learning environments, day care centres and rooms with very noisy environments. Available in different formats and edge designs. The disc has a coating on the surface that makes it easier to maintain and gives it a longer service life than more traditional absorbers on the market.
Sound absorber. A+E edge.
E-edge is a commodity.
For larger orders, please request offer.

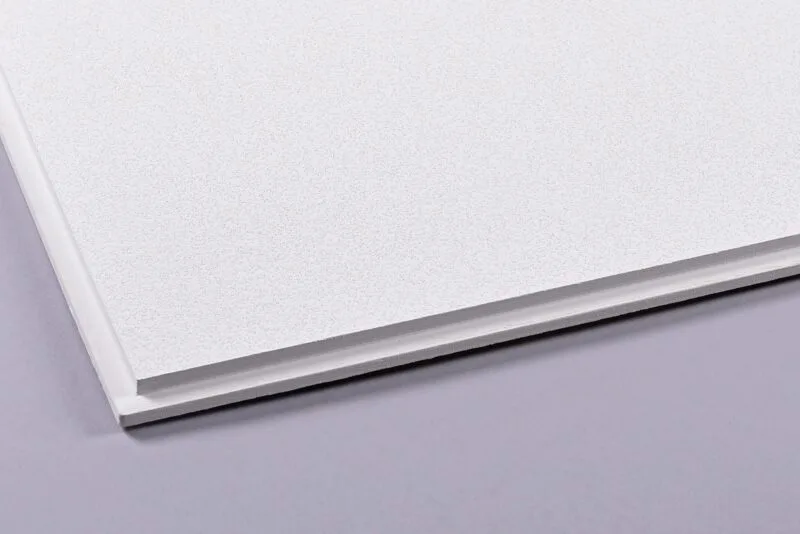

Colour. The closest colour code is NCS S0502-Y. Light reflection is 83%. The panels are available in edge design A and E. Special colours can be ordered (minimum quantity is 100 m2)
Fire class. A2-s1,d0, according to EN 13501-1
The product is M1 certified. This means that the product has been tested and fulfils the strictest international requirements for emissions and non-use of toxic components. There are special requirements for acoustic products that must be met to obtain M1 certification.
EPD (Environmental Product Declaration). The product has completed the LCA (Life Cycle Assessment) report and received the EPD (Environmental Product Declaration) certificate.
Cleaning and maintenance. The panel has a surface that allows for dusting, vacuuming and gentle washing with a slightly damp cloth. If the disc is painted over, it will lose its properties.
Data sheets and documentation
Norwegian:
Danish:
English:
Acoustics
The disc is classified as class A.
The absorption test is carried out in accordance with ISO 354. The absorption coefficient (αw) is calculated to 0.95 according to ISO 11654.
Installation

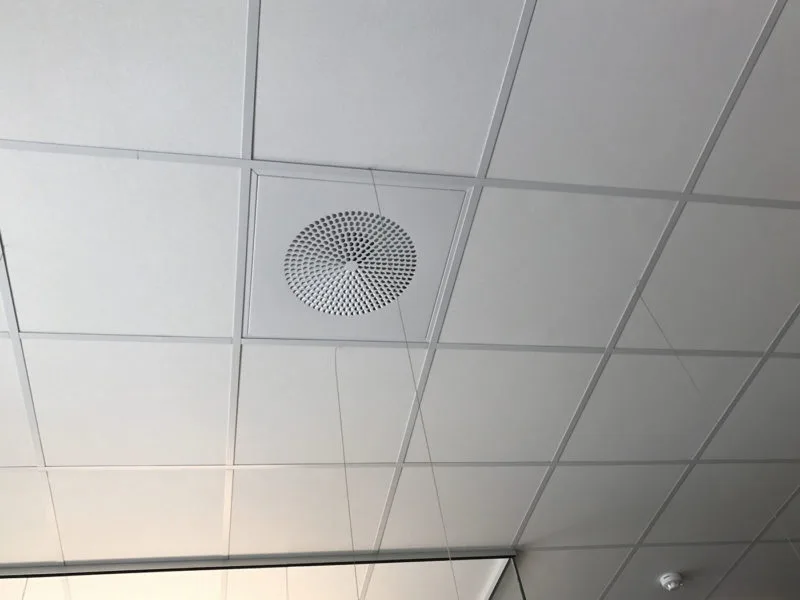

For assembly, it is necessary to use a HIMLING SYSTEM.
