Eira™ 40mm Black soundproofing circle
kr 2,667 - kr 3,151 kr 2,401 - kr 2,836 pr. m² inc.vat
Baffle and raft. Very good sound absorption - sound attenuation, class A. The panel is 40 mm thick. Can be suspended from the ceiling or glued directly to the wall/ceiling.
Price per box.
Remember the correct fastener/suspension.
Used in Adventurous remodelling
Description

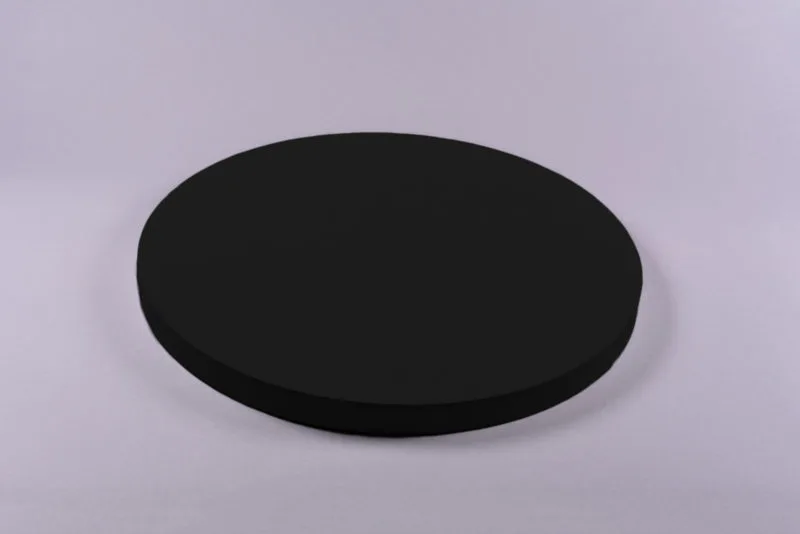

Black round sound absorbing aborbent with textured surface.
The panel is designed specifically for installation suspended from the ceiling or glued to a wall or ceiling. The panel has a finely textured surface on all sides. It has extremely good sound absorption and is highly sound-absorbing. It is therefore very suitable for reducing reverberation and noise in all types of areas, such as offices and teaching environments, day care centres and rooms with a lot of noise.
Installation. The panels are installed in ceilings with wire suspension. Suspension consists of spiral screw, wire and fixing hook. Can also be glued to a wall or ceiling. The panels do not fit into a traditional T-system
Edge types. Edge A
Sizes. Standard sizes and colours in stock. Special sizes and colours can be ordered.
Colours. Matt black. Special colours can be ordered (minimum quantity is 100 m2)
Fire class. A2-s1,d0, according to EN 13501-1
The product is M1 certified. This means that the product has been tested and fulfils the strictest international requirements for emissions and non-use of toxic components. There are special requirements for acoustic products that must be met to obtain M1 certification.
EPD (Environmental Product Declaration). The product has completed the LCA (Life Cycle Assessment) report and received an EPD (Environmental Product Declaration) certificate.
Cleaning and maintenance
The disc has a surface that allows easy dusting. If the board is painted over, it will lose its soundproofing properties.
Additional information
| Diameter(mm) | 1200, 600, 900 |
|---|---|
| Colour |
Data sheets and documentation
Norwegian
Danish
English:
Acoustics
The disc is classified as class A.
The absorption test is carried out in accordance with ISO 354:2003 without air behind the boards.
NRC = 0.90. The absorption coefficient (αw) is calculated to 0.90 according to ISO 11654.
Installation
The panels are installed in ceilings with suspension consisting of spiral screw, wire and fixing hook, suspension purchased separately. The discs do not fit into a traditional T-system.
Installation guide raft and baffle
The panels can also be glued directly to ceilings and walls;
Installation guide glued up
Information about sound damping when gluing sound-absorbing and sound-blocking panels
You may also like…
-
Sale!
Soudal Fix All X-Treme Power. Wall and pitched roof
kr 221 inc.vat Add to basketFor pitched roofs, walls and vertical surfaces.
Soudal Fix All X-Treme Power is a high-quality 1-component power adhesive with extremely high instant tack.
280ml. Price per piece.
You need 1 adhesive cartridge for 2m² of absorbent.
-
Sale!
Assembly glove, 10 pack
kr 197 inc.vat Add to basketInstallation glove, white cotton. For installation of absorbents.
One-size sized. 9/10. 10 pairs in each pack.
-
Soudal Fix ALL High tack assembly adhesive. High tack
kr 167 inc.vat Select options This product has multiple variants. The options may be chosen on the product pageFor ceilings and horizontal surfaces.
Soudal Fix All High Tack is a flexible high strength joint adhesive for instant adhesion.
290ml. Price per piece.
You need 1 adhesive cartridge for 2m² of absorbent.
Related products
-
Loke™ Hygiene 40mm - sound absorbing disc
kr 1,250 – kr 1,407 pr. m² inc.vat Select options This product has multiple variants. The options may be chosen on the product pageHygiene panel with waterproof surface and extremely good sound absorption - sound attenuation, class A. The panel is 40 mm and has been specially developed for installation directly on ceilings or walls.
-

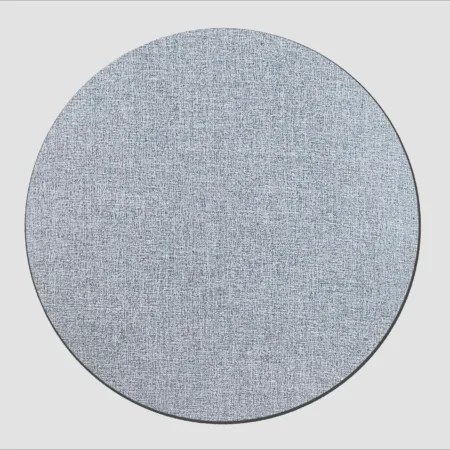

Frigg™25mm textile soundproofing disc
