Loke™ 40mm sound dampening circle
kr 2,706 - kr 3,246 kr 2,435 - kr 2,921 pr. m² inc.vat
Baffle and raft. Very good sound absorption - sound attenuation, class A. The panel is 40 mm thick. Can be suspended from the ceiling or glued directly to the wall/ceiling.
Price per box.
Description

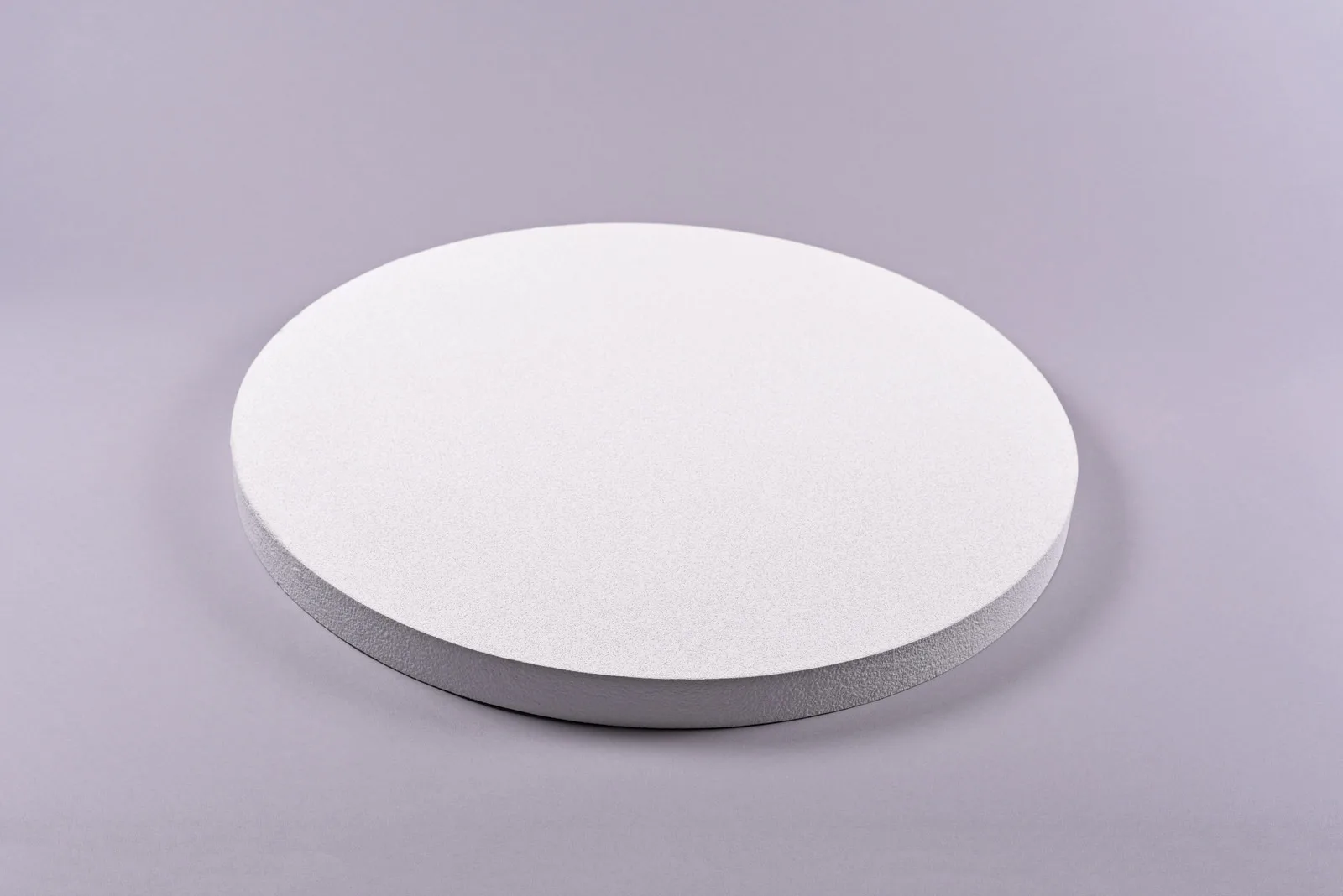

White round sound absorbing disc with textured surface.
The panel is designed specifically for installation suspended from the ceiling or glued to a wall or ceiling. The panel has a finely textured surface on all sides. It has extremely good sound absorption and is highly sound-absorbing. It is therefore very suitable for reducing reverberation and noise in all types of areas, such as offices and teaching environments, day care centres and rooms with a lot of noise.
Installation. The panels are installed in ceilings with wire suspension. Suspension consists of spiral screw, wire and fixing hook. Can also be glued to a wall or ceiling. The panels do not fit into a traditional T-system
Edge types. Edge A
Sizes. Standard sizes and colours in stock. Special sizes and colours can be ordered.
Colour. White closest colour code is NCS 0502-Y. Special colours can be ordered (minimum quantity is 100 m2)
Fire class. A2-s1,d0, according to EN 13501-1
The product is M1 certified. This means that the product has been tested and fulfils the strictest international requirements for emissions and non-use of toxic components. There are special requirements for acoustic products that must be met to obtain M1 certification.
EPD (Environmental Product Declaration). The product has completed the LCA (Life Cycle Assessment) report and received an EPD (Environmental Product Declaration) certificate.
Cleaning and maintenance
The disc has a surface that allows easy dusting. If the board is painted over, it will lose its soundproofing properties.
Additional information
| Diameter(mm) | 1200, 600, 900 |
|---|---|
| Colour |
Data sheets and documentation
Norwegian:
Danish:
English:
Acoustics
The disc is classified as Class A
The absorption test is carried out in accordance with ISO 354:2003 without air behind the boards.
NRC = 0.90. The absorption coefficient (αw) is calculated to 0.90 according to ISO 11654.
Installation
The panels are installed in ceilings with suspension consisting of spiral screw, wire and fixing hook, suspension purchased separately. The discs do not fit into a traditional T-system.
Installation guide raft and baffle
The panels can also be glued directly to ceilings and walls;
Installation guide glued up
Information about sound damping when gluing sound-absorbing and sound-blocking panels
