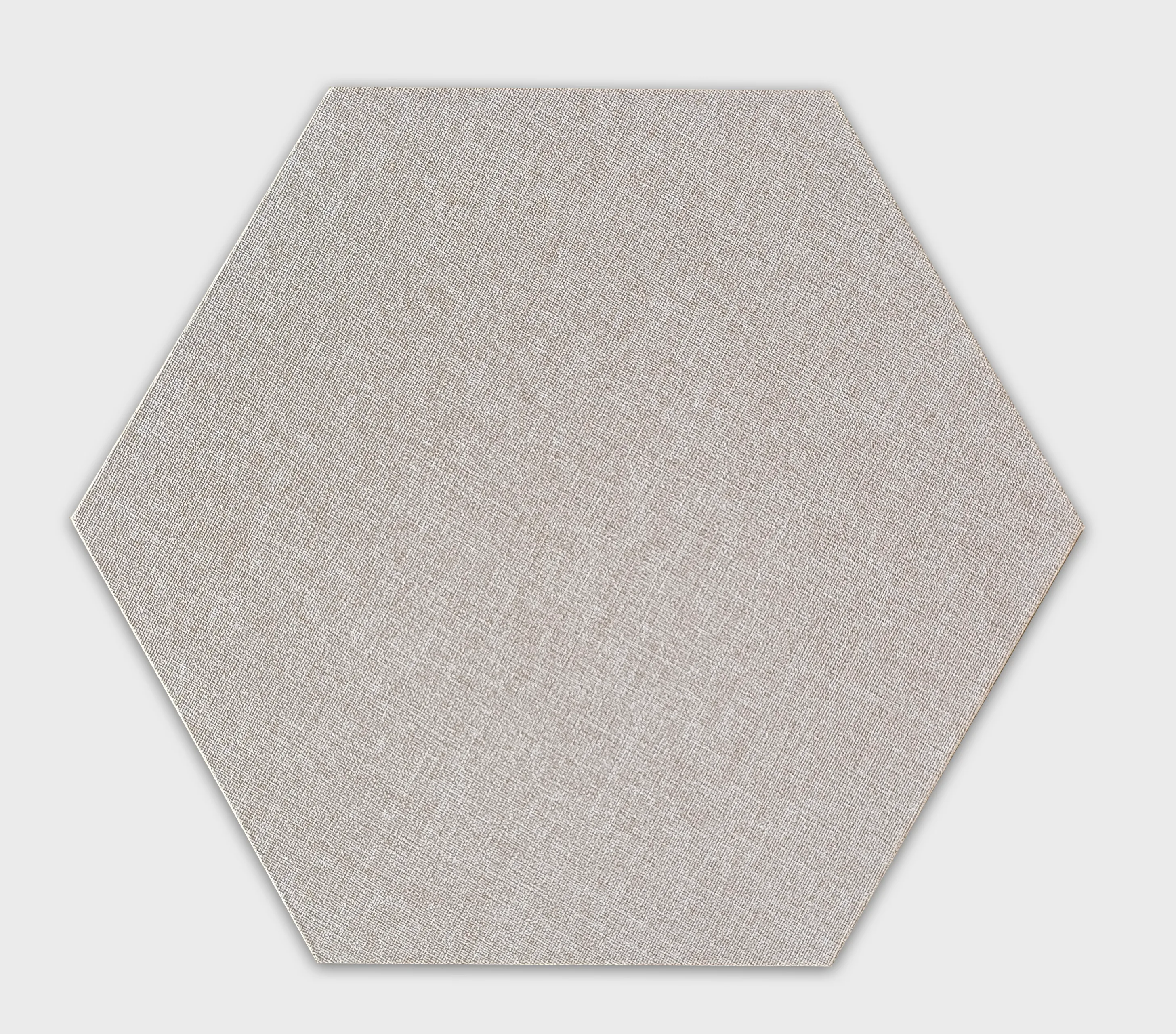

Frigg™ Hex 40 mm sound damping disc

kr 702 kr 632 inc.vat

Decorative and highly effective sound absorbers.

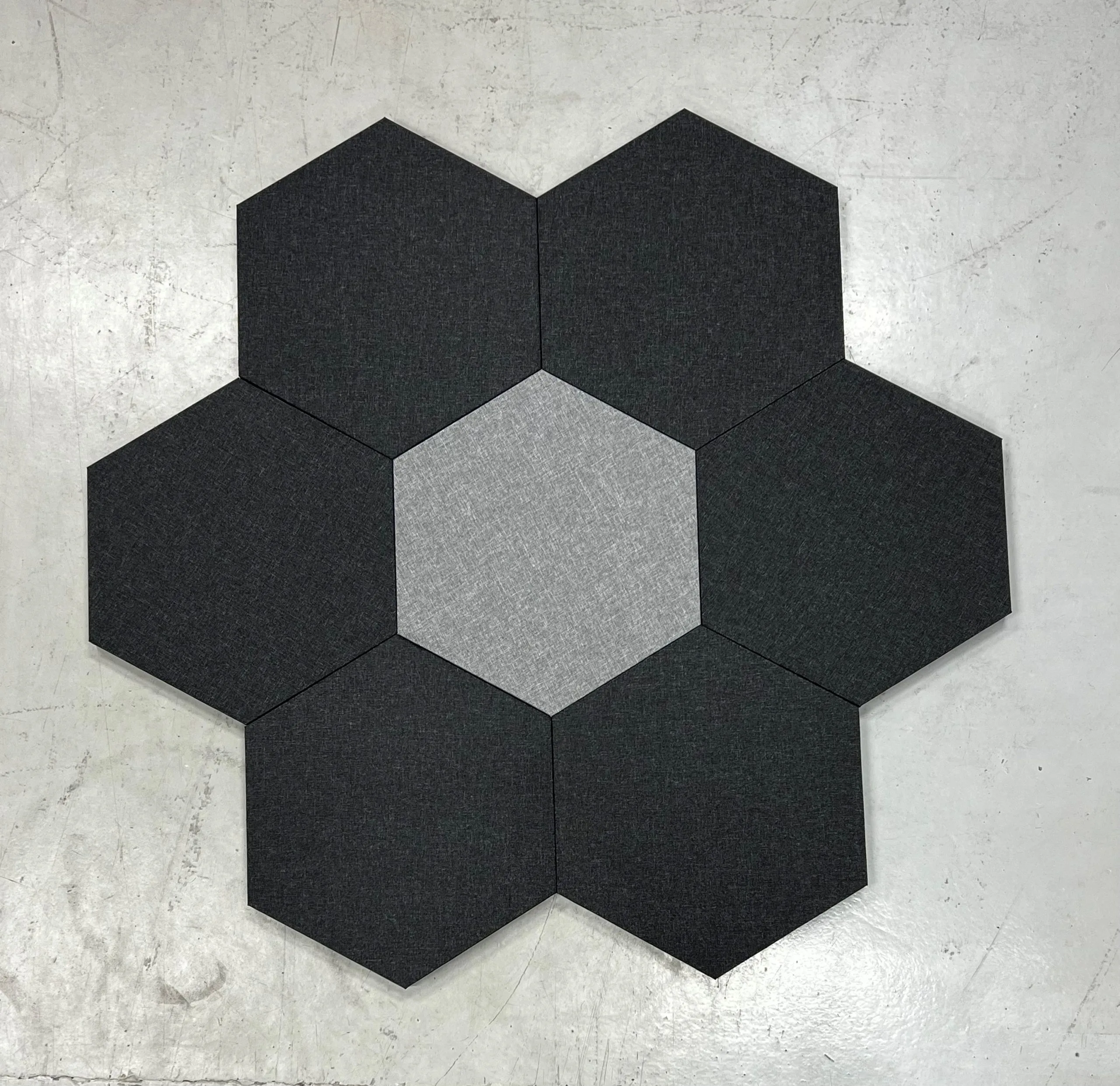

The sound absorbers are covered with fabric and come in a decorative hexagon shape.
Sold individually or in boxes of 10. The price stated is per piece.

Size: 600x520x40 mm (0.23 m2)

Description

Highly effective and decorative sound absorbers.

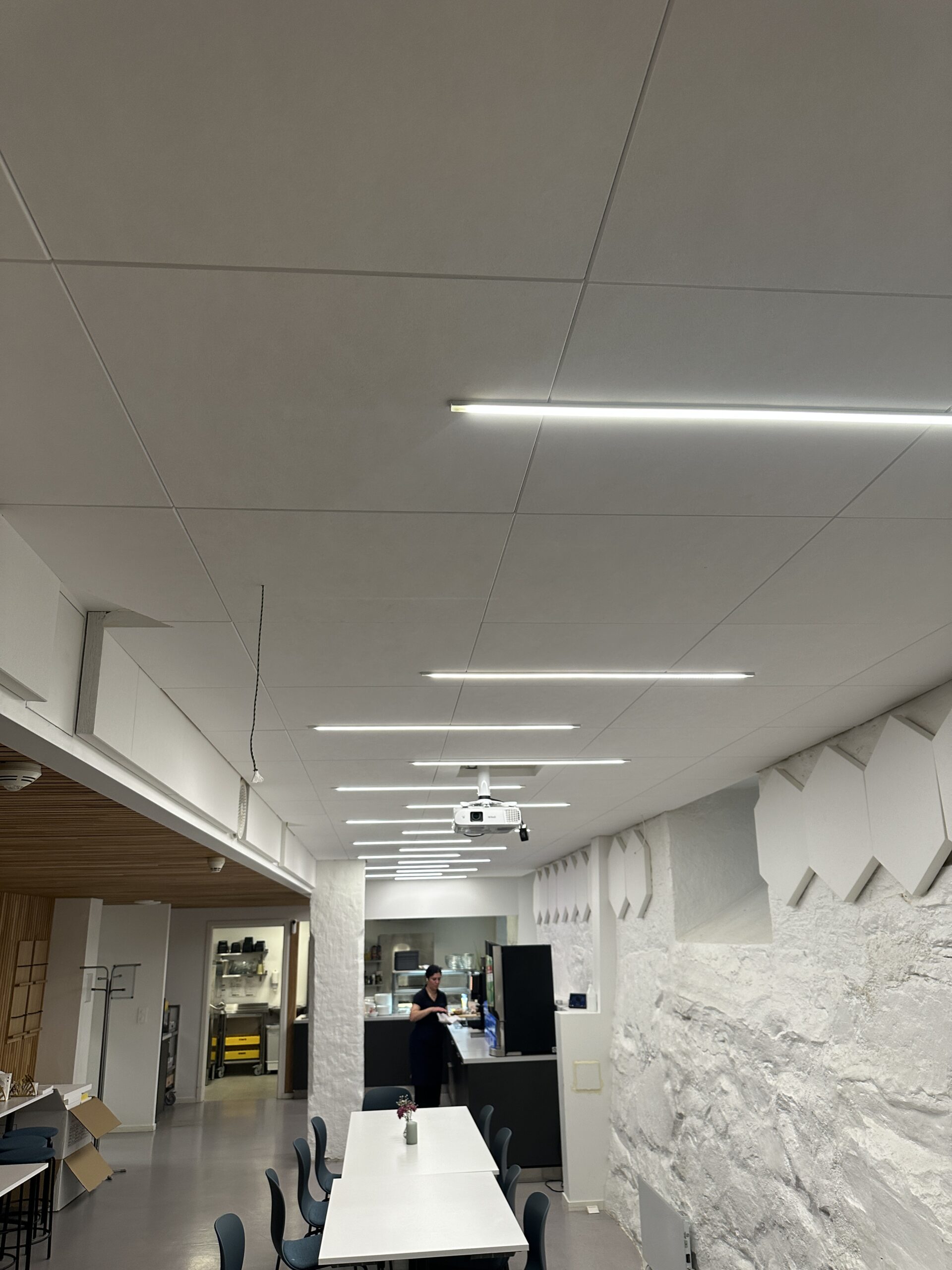

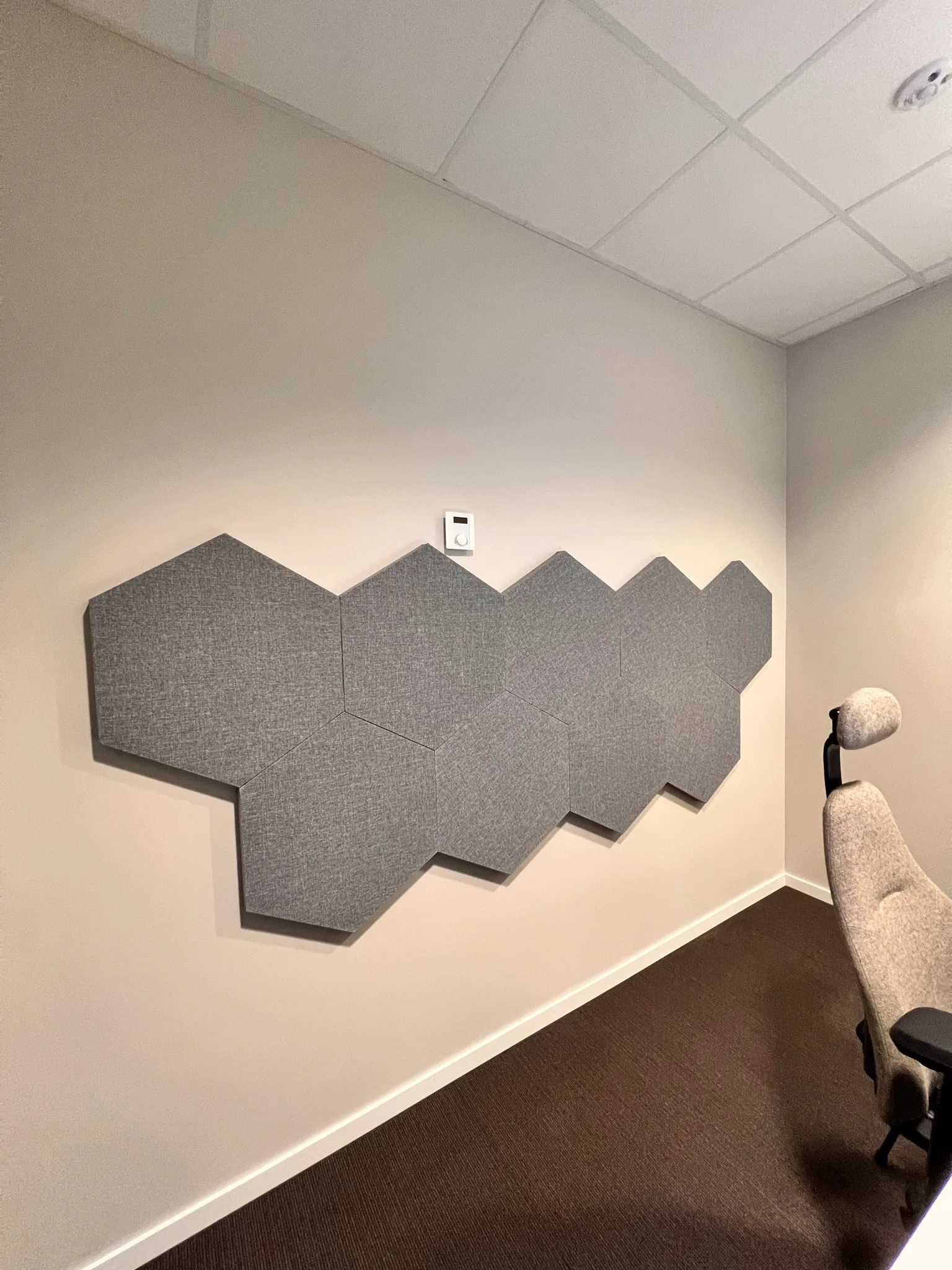

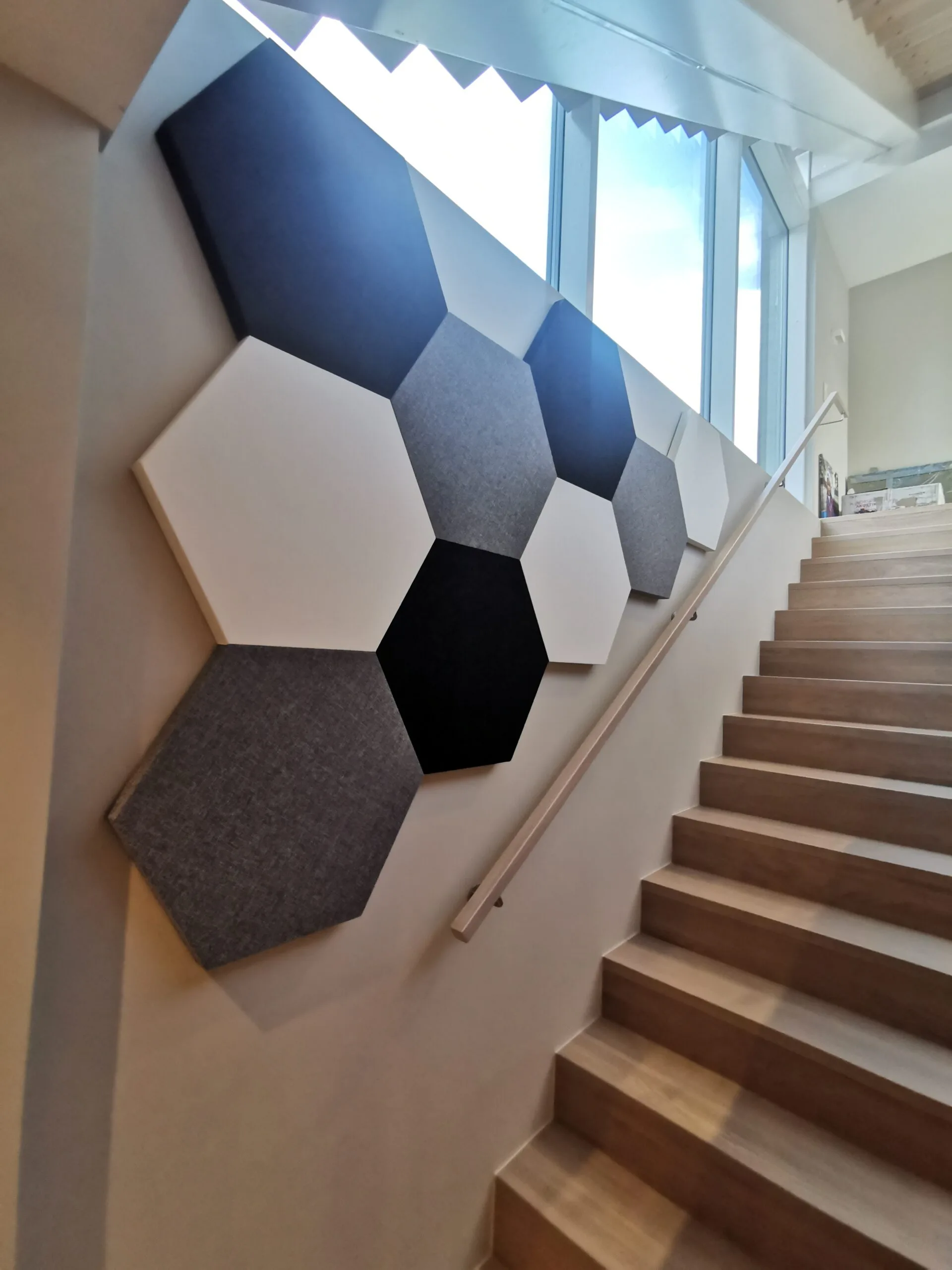

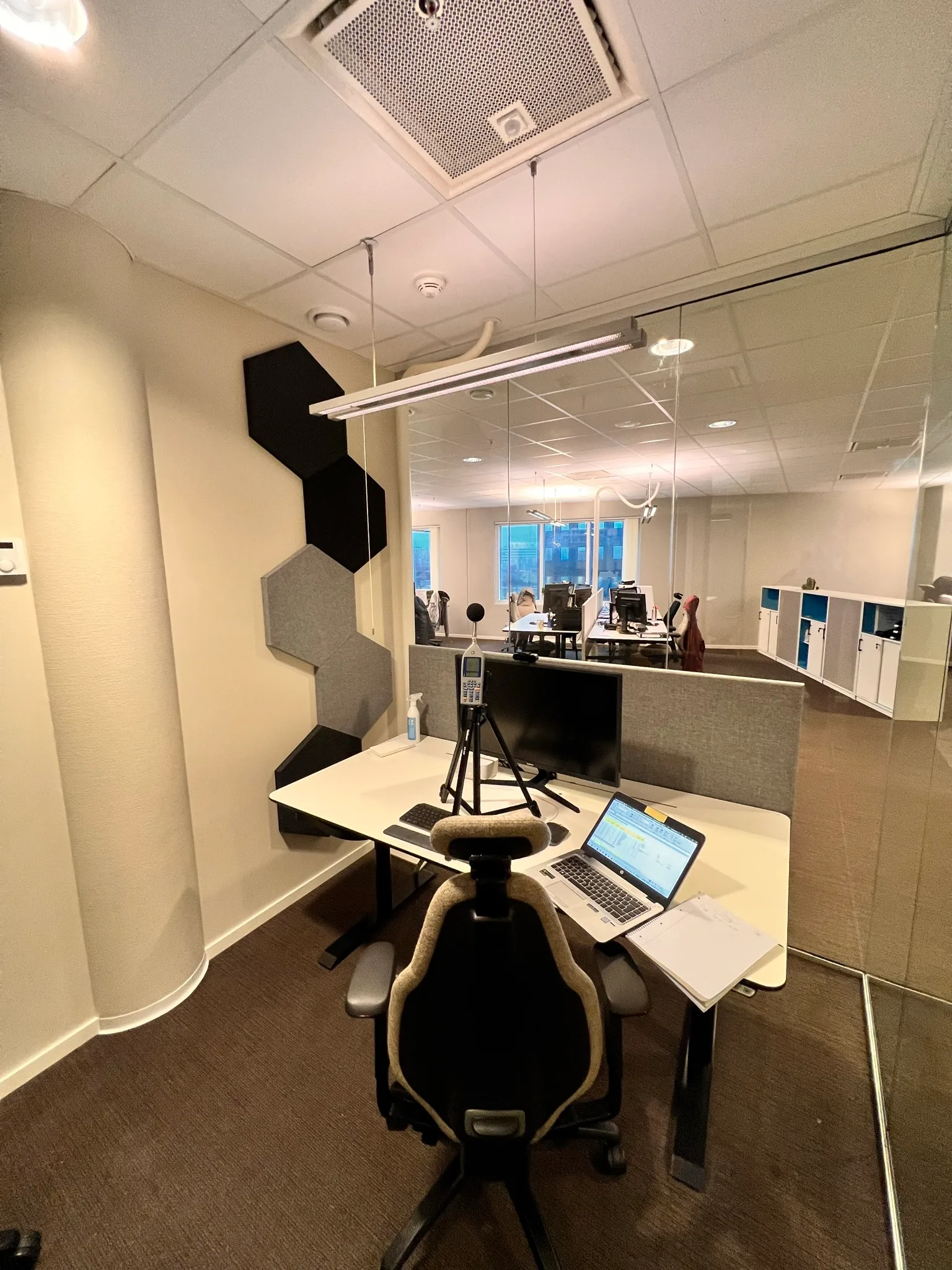

The sound absorbers are covered with fabric and come in a decorative hexagon shape. The surface is impact-resistant and very robust and is therefore suitable for use in all types of rooms with many types of activity. For example, they can be used in meeting rooms, audio rooms, recording studios, gyms, day care centres and children's rooms. Of course, they can also be used decoratively in offices and homes.

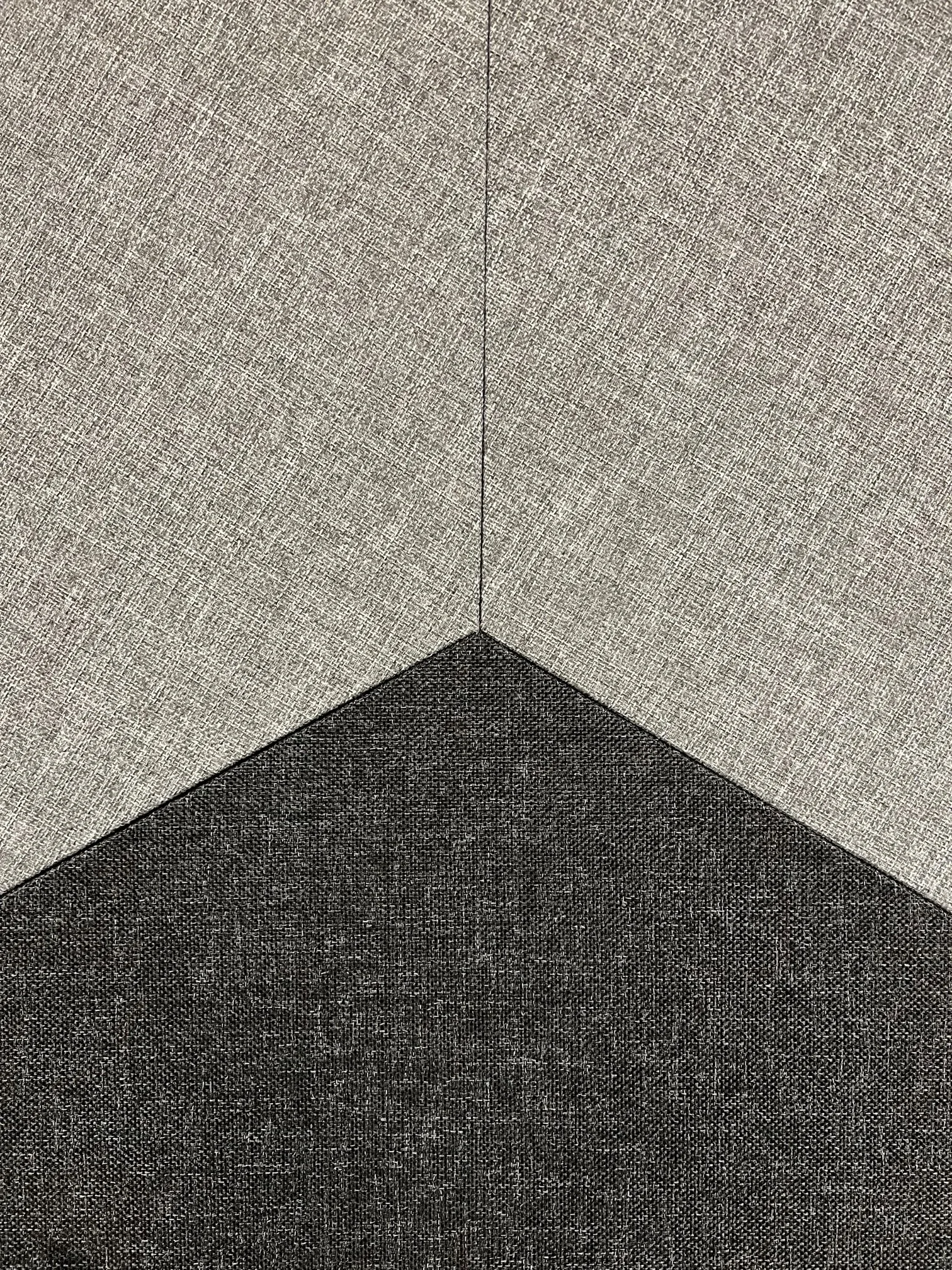

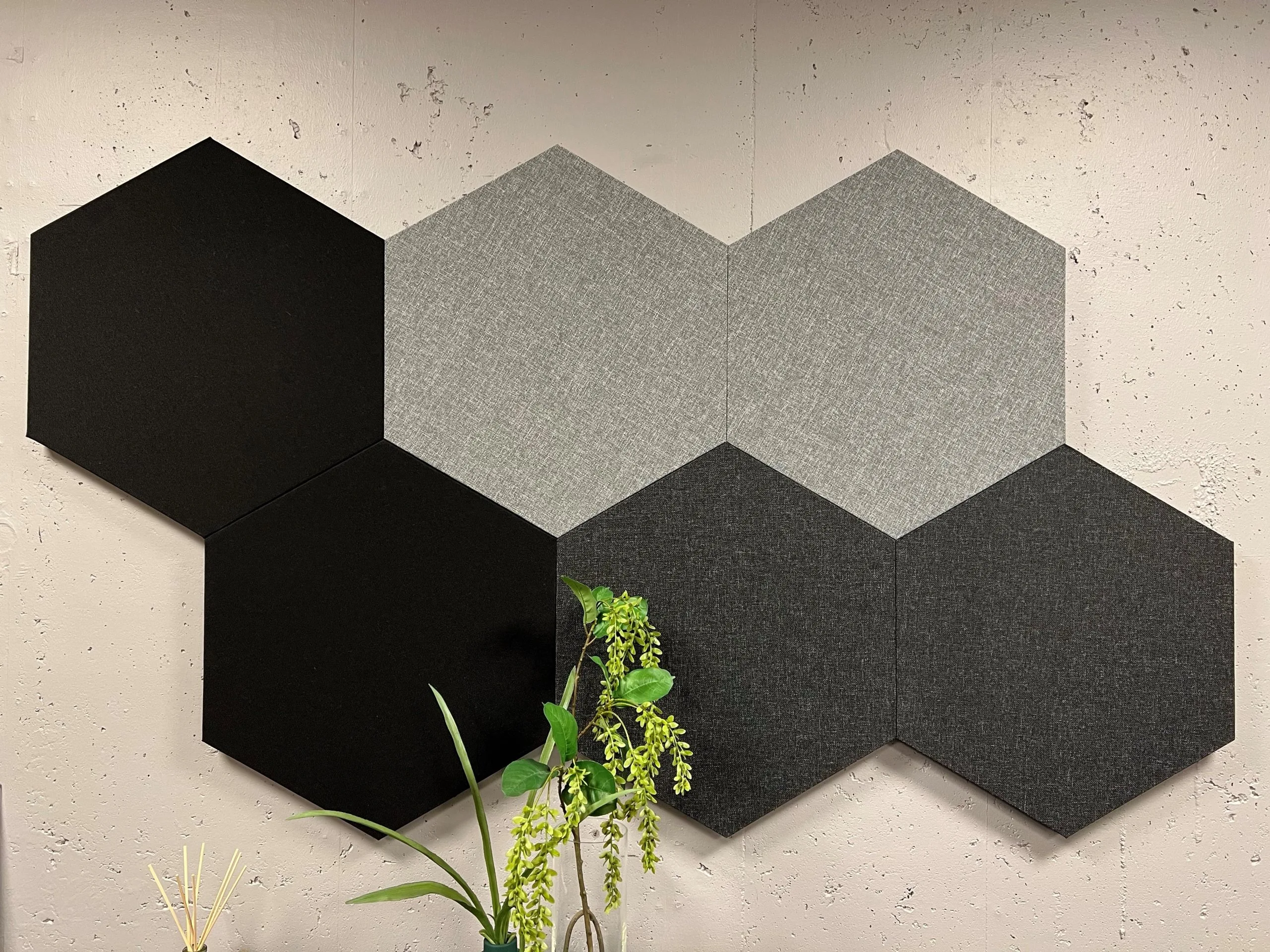

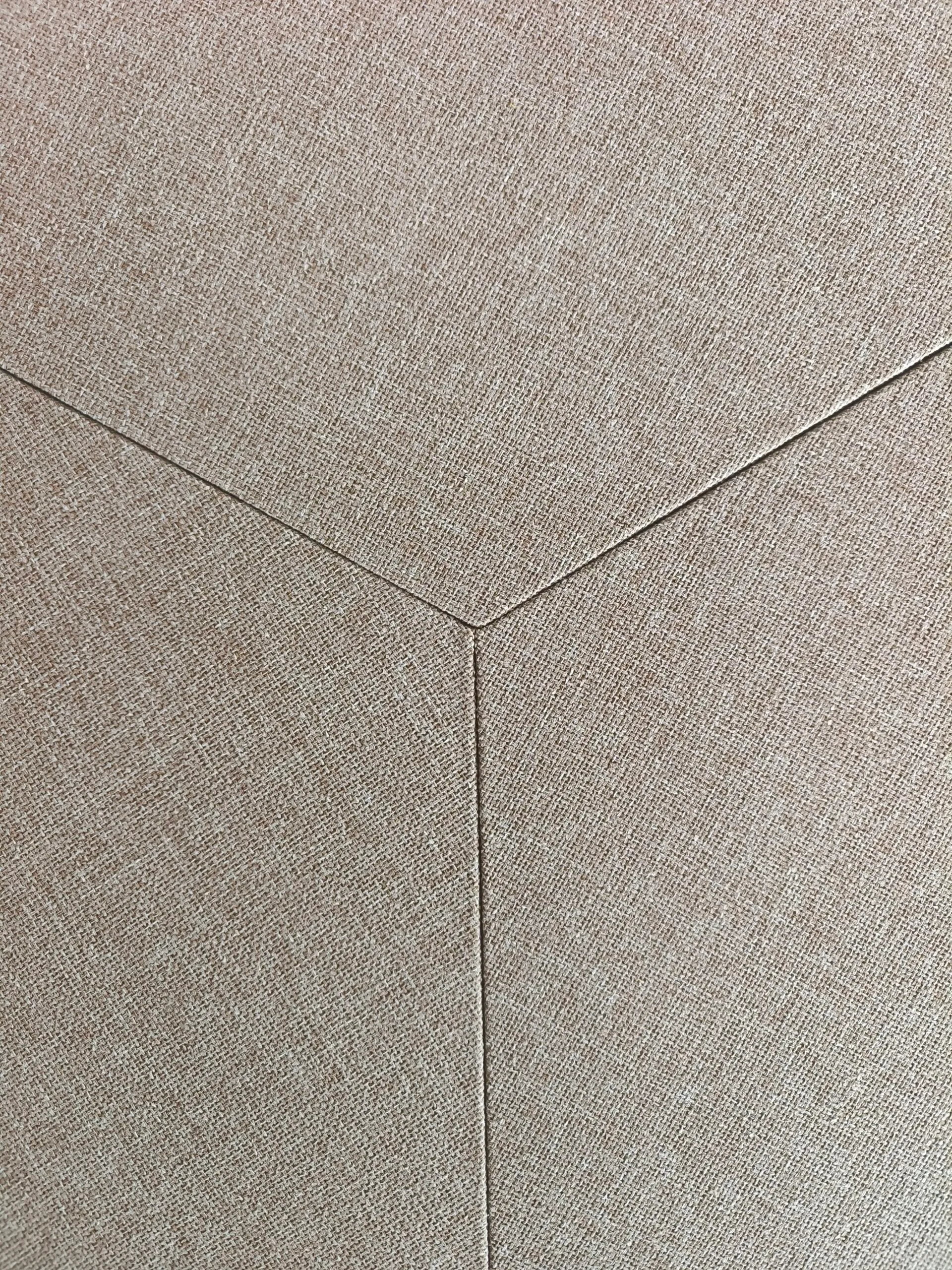

Frigg Hexagon comes in the colours: beige, black, grey and charcoal grey or with printed colour/motif.

Size: 600x520x40 mm (0.23 m2)

Sold individually or in boxes of 10.



Wall absorbers made of glass wool and fire retardant textile.
Manufactured and tested in accordance with EN 13964: 2014.

The core of the panels consists of glass wool with a density of 100 kg/m3. The visible surface is coated with coloured textile. The reverse side is covered with transparent non-woven fabric. The edges are sealed under the textile with water-based lime glue. The sheet is 40 mm thick.

Fire safety. The boards are not flammable. The textile on the surface is fire class C. The core is fire class A2. Both in accordance with EN 13823.

Impact resistant. The absorber is tested for impact resistance in class 1A in accordance with EN13964, annex D and DIN 18032:2018-11. This is the best possible for this type of product/material

The product is M1 certified. This means that the product has been tested and fulfils the strictest international requirements for emissions and non-use of toxic components. There are specific requirements for acoustic products that must be met to obtain M1 certification

Insulating properties. The absorbers have very good insulation properties. Laboratory tested in accordance with current regulations. Thermal thermal conductivity / Lambda value = 0.033W/(m-K). Thermal heat resistance = 1.191 (m2-K)/W.

EPD (Environmental Product Declaration). The product has completed the LCA (Life Cycle Assessment) report and received an EPD (Environmental Product Declaration) certificate.

Cleaning and maintenance. The disc has a surface that allows for dusting, vacuuming and gentle washing with a slightly damp cloth. If the disc is painted over, it will lose its properties





Additional information

Colour

, , , ,

Data sheets and documentation

Norwegian:

Danish:

English:

Acoustics

The disc is classified as Class A
The absorption test is carried out in accordance with ISO 354:2003 without air behind the boards. NRC = 0.90.
The absorption coefficient (αw) is calculated at 0.95 according to ISO 11654.

Installation

Normally attached with installation adhesive. Then you need 1 cartridge per 2 m2 of absorbent. Glue to wall and pitched roof. and glue for the roof. Alternatively with suspension bracket or fixing screws.

Installation guide glued up
Mounting guide for screws
Installation guide suspension bracket

Information about sound reduction by gluing on sound-absorbing and sound-blocking panels.
